Hitech Series Color Sorter

New Multi Purpose Sorting Machine

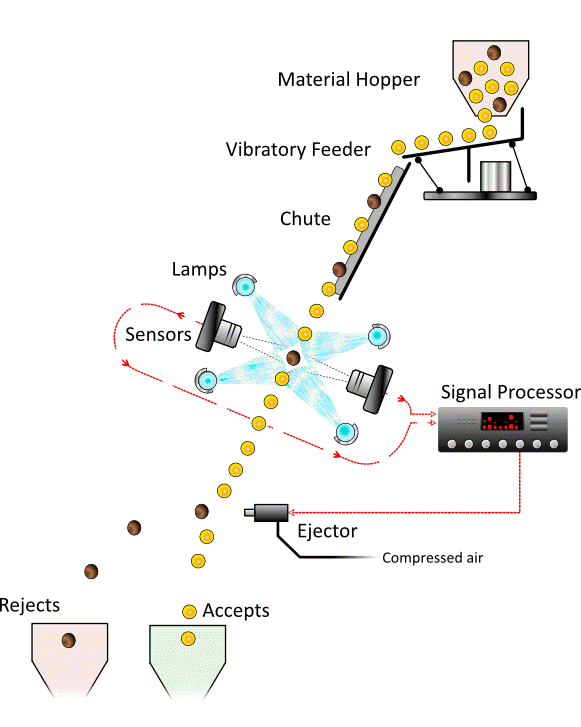

A Color Sorter Machine is an advanced optical sorting system designed to enhance the quality and purity of rice by automatically detecting and removing defective grains, discolored rice, and impurities. Using high-resolution cameras and AI-powered image processing, the machine scans each grain with precision, identifying defects based on color, shape, and foreign material presence. Once identified, pneumatic ejectors swiftly remove the unwanted grains, ensuring only premium-quality rice remains. With high-speed processing, customizable sorting modes, and energy-efficient operation, the color sorter optimizes productivity while minimizing rejection losses.

"Most Advanced & High Quality"

Technical Specification

Model Channel
Chute
Capacity
(T/H)
Compressor
(HP)
Voltage Power
(KW)
Dimension
(L x W x H)
Weight
(Kg)
Accuracy
MM-1
64/1
0.5 to 0.8
7.5 HP
220/50Hz
1 KW
1007x1641x1967
250
> 99%
MM-2
128/2
07 to 1.3
10 HP
220/50Hz
1.4 KW
1321x1641x1967
400
> 99%
MM-3
192/3
1.5 to 2
15 HP
220/50Hz
1.8 KW
1635x1641x1963
580
> 99%
MM-4
254/4
2 to 2.5
20 HP
220/50Hz
2 KW
1949x1641x1967
720
> 99%
MM-5
320/5
2.5 to 3
25 HP
220/50Hz
3 KW
2314x1550x2050
900
> 99%
MM-6
384/6
3 to 3.5
30 HP
220/50Hz
3.5 KW
2630x1590x2050
1020
> 99%
MM-7
448/7
3.5 to 4
35 HP
220/50Hz
4 KW
2942x1590x2050
1250
> 99%
MM-8
512/8
4 to 4.5
40 HP
220/50Hz
4.5 KW
3443x1590x2050
2030
> 99%
MM-10
640/10
4.5 to 5
50 HP
220/50Hz
5 KW
4070x1550x2050
2500
> 99%
